Description
Male ORB Swivel 90° Block Style
Recommended hose to be used with this style of couplings are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose.
MBX90-08-08-K2
Male ORB Swivel 90° Block Style
Recommended hose to be used with this style of couplings are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose.
Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
---|

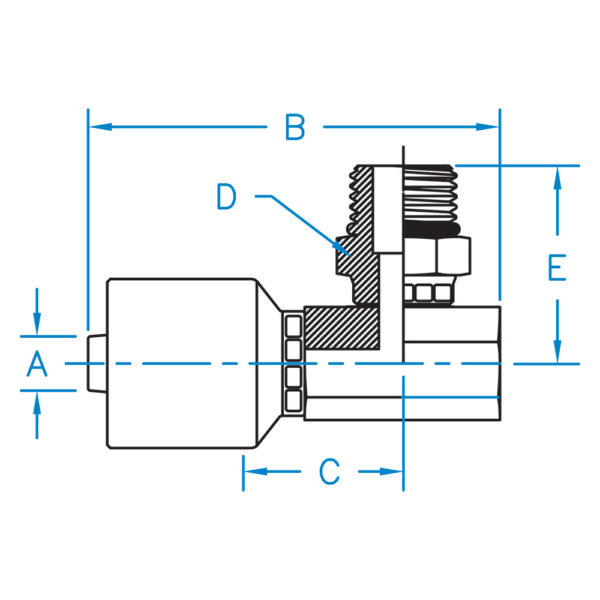

A | 1/2 |
B | 2.64 |
C | 1.33 |
D | 15/16 |
E | 1.68 |
F | 15/16 |
Thread | 3/4 - 16 |
