Description
Recommended hose to be used with this style of couplilngs are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17
KURT TUFF
100R7 and 100R8 Crimp
Komatsu JIS 30° Seat 45 Bent Tube Female Swivel – F-KOMX45-04-14
F-KOMX45-04-14

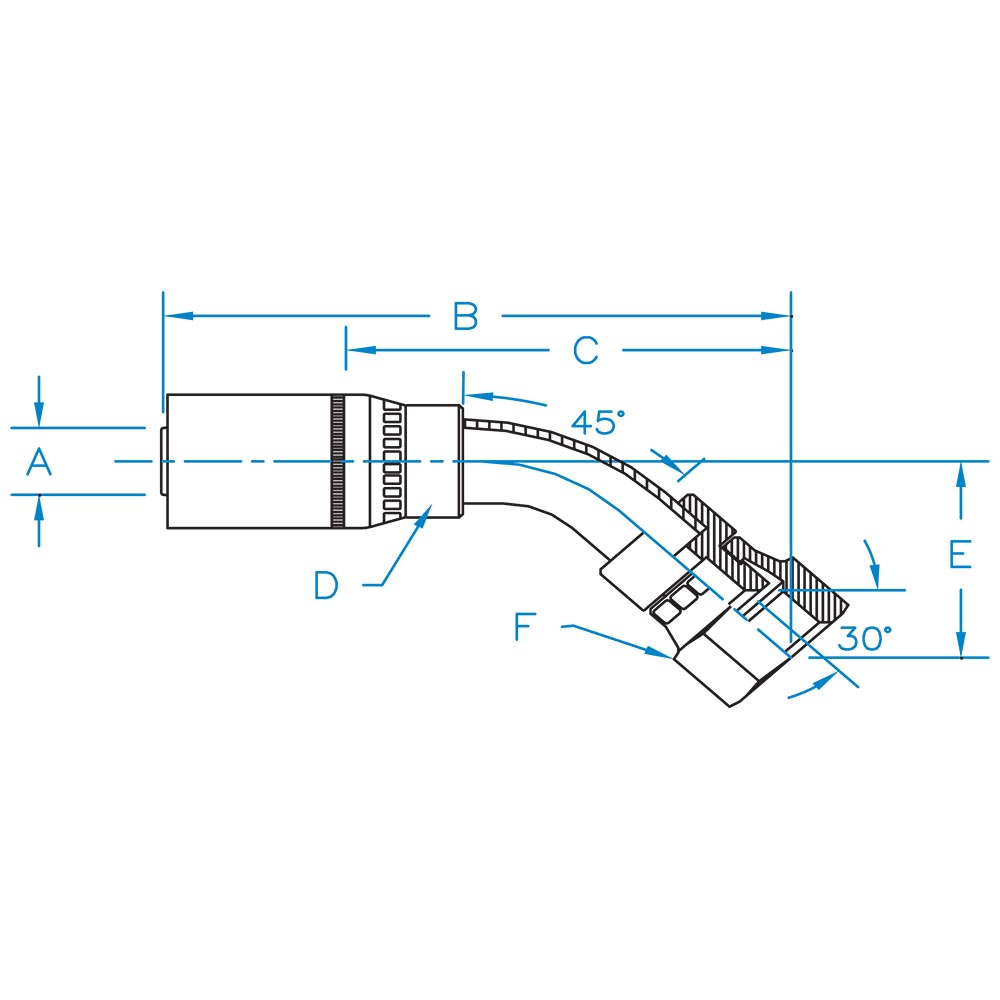

Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|
| A | 1/4 |
| B | 3.58 |
| C | 2.33 |
| D | 5/8 |
| E | .80 |
| F | 11/16 |
| Thread | M14 - 1.5 |
