Description
Female Din 24° Light Straight Swivel
Recommended hose to be used with this style of couplings are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose.
Din Light 24º Seat Female Swivel With O-Ring – K2 – F-DL08-18-26-K2
F-DL08-18-26-K2
Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|

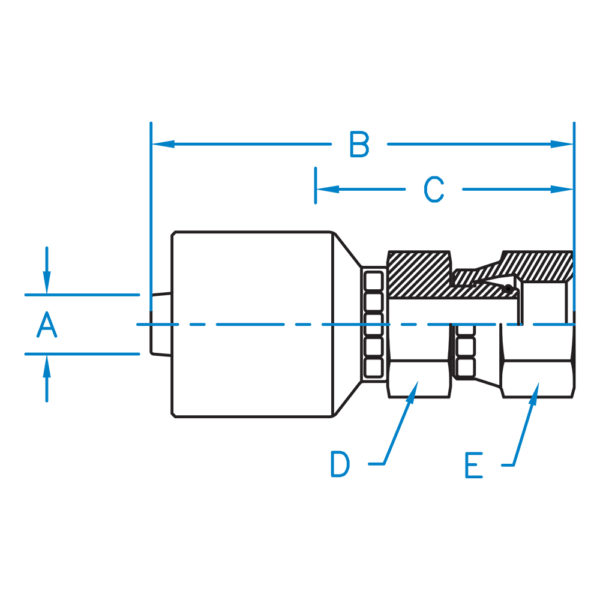

| A | 1/2 |
| B | 3.78 |
| C | 1.68 |
| D | 1 |
| E | 1-1/4 |
| Thread | M26 - 1.5 |
