Description
Recommended hose to be used with this style of couplilngs are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17
KURT TUFF
100R7 and 100R8 Crimp
Din Heavy Universal Seat Female Swivel – F-DINHX-04-16
F-DINHX-04-16
Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|

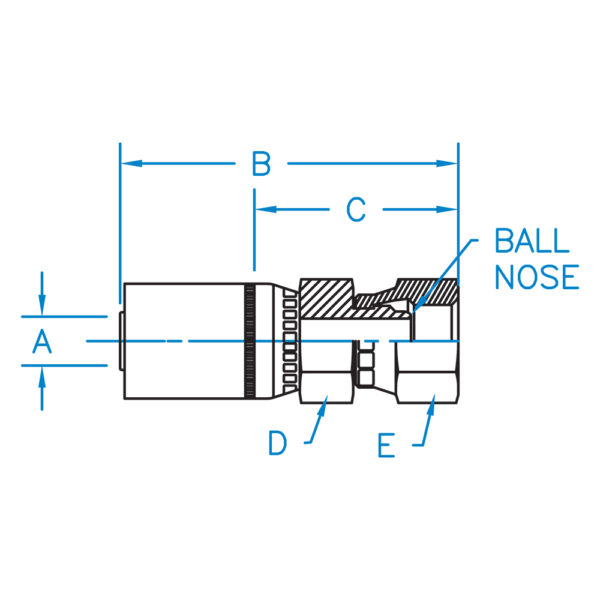

| A | 1/4 |
| B | 2.51 |
| C | 1.25 |
| D | 11/16 |
| E | 3/4 |
| Thread | M16 X 1.5 |
