Description
Female Din 24° Heavy Swivel
Recommended hose to be used with this style of couplings are:
SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose.
Din Heavy 24º Seat Female Swivel With O-Ring – K2 – F-DH04-08-16-K2
F-DH04-08-16-K2
Additional Information
| Industry | Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas |
|---|

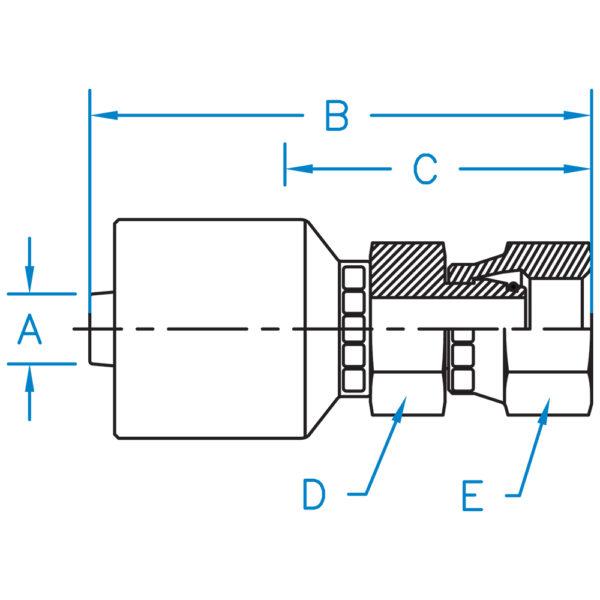

| A | 1/4 |
| B | 2.07 |
| C | 1.01 |
| D | 9/16 |
| E | 3/4 |
| Thread | M16 - 1.5 |
